Technical Specifications – Concrete Pump 20 M3/H
Model: ZP-20D
Type: Diesel-powered hydraulic concrete pump
| Parameter | Specification |
|---|---|
| Maximum Theoretical Output | 20 m³/h |
| Maximum Pumping Pressure | 7 MPa |
| Concrete Cylinder Diameter × Stroke | Ø120 mm × 800 mm |
| Main Hydraulic Pump | Variable displacement axial piston pump |
| Feeding Height | 1000 mm |
| Power Type | Electric engine |
| Engine Model | Changchai ZN490B or equivalent |
| Engine Power | 42 kW (56 HP) @ 2200 rpm |
| Hydraulic Oil Tank Capacity | 160 L |
| Concrete Hopper Capacity | 0.30 m³ |
| Max Horizontal Conveying Distance | 180 m |
| Max Vertical Conveying Height | 50 m |
| Pipe Diameter | 100 mm |
| Aggregate Size (Max) | 30 mm |
| Dimensions (L×W×H) | 4100 × 1550 × 1750 mm |
| Weight | 2400 kg |
| Cooling System | Air and oil cooling combined |
| Control System | Hydraulic control with manual emergency override |
| Chassis Type | Towable trailer with single axle |
| Working Temperature Range | -10°C to +45°C |

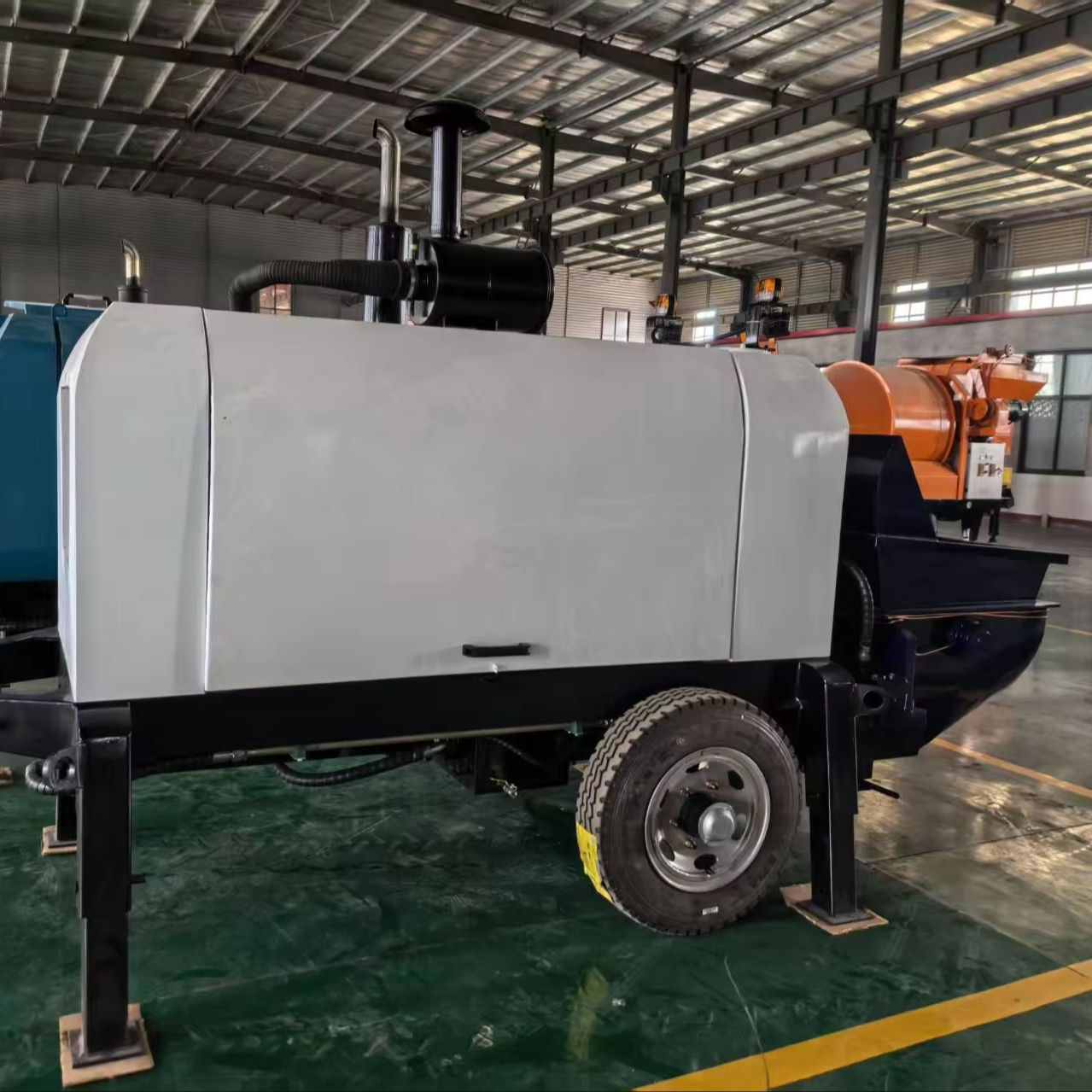

Concrete Electric Pump 20
206.000,00leiPrice
